How Many Cat6 Cables Fit in Conduit? A Practical Planning Guide
Share
“How many Cat6 cables fit in a conduit?” sounds like a simple question, but there is no reliable universal count. Cat6 cable outside diameters vary by manufacturer and construction, and conduit dimensions vary by material and trade size. Shielded, outdoor and higher-performance cables can be significantly larger than ordinary UTP.
The correct approach is to calculate from the actual cable outside diameter and the usable area of the selected pathway, then verify the result against the requirements that apply to the project.
Why a cable-count chart can be misleading

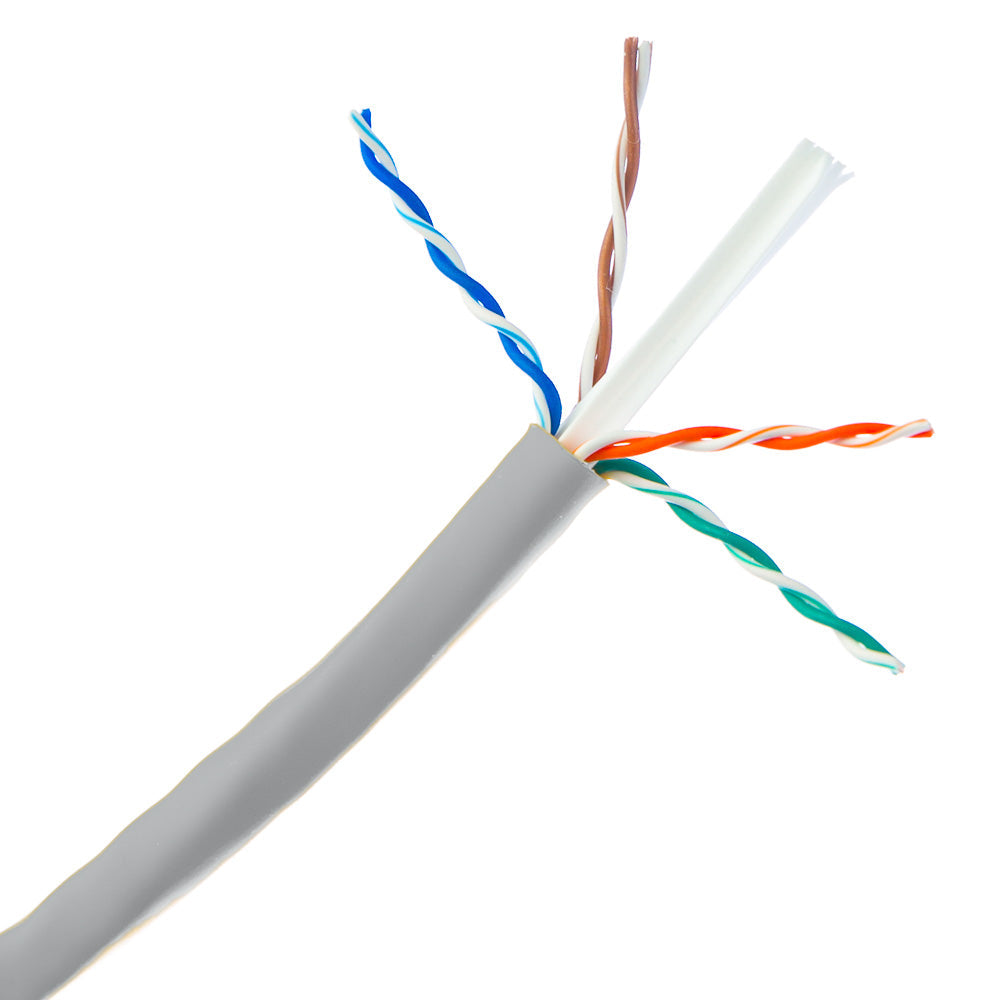

Two boxes can both say Cat6 while using different conductor gauges, separators, jackets and overall diameters. A count based on a small Cat6 cable could overfill the same conduit when a larger shielded or outdoor cable is substituted later.
That is why professional planning starts with the cable data sheet, not a generic “Cat6 cables per conduit” chart.
Step 1: find the cable outside diameter
Use the manufacturer's published outside diameter for the exact part number. Do not estimate from the conductor gauge. The outside diameter includes the complete cable construction and jacket.
Step 2: determine the pathway's usable area
Use the applicable conduit/raceway dimensions and fill requirements for the installation. The permitted fill depends on the pathway and project conditions; local codes and the authority having jurisdiction can affect the final answer.
This article is a planning guide, not a substitute for the applicable electrical/building code or the project engineer's specification.
Step 3: calculate cable cross-sectional area
If the cable outside diameter is d, its approximate circular cross-sectional area is:
Area = π × (d ÷ 2)²
Multiply that area by the number of cables you are considering, then compare the total with the usable pathway area permitted for the project.
Step 4: leave practical pulling room
A design can be mathematically possible and still be unpleasant to install. Long pulls, bends, pulling tension, future additions and large cable bundles all affect field usability.
Experienced contractors often plan pathways with future capacity in mind rather than targeting the absolute theoretical maximum on day one.
Step 5: account for cable changes
If the bid allows substitutions, re-check the fill whenever the cable part number changes. Moving from ordinary UTP to shielded Cat6A, for example, can materially increase cable diameter and invalidate the original count.
| Variable | Why it changes the result |
|---|---|
| Cable outside diameter | Directly changes cross-sectional area |
| Shielding | Can increase cable diameter |
| Outdoor / specialty jacket | May change overall construction |
| Conduit type and size | Changes internal usable area |
| Bends / pull length | Affects practical pulling difficulty |
| Future expansion | May justify additional pathway capacity |
Do not overlook pathway management outside the conduit
Conduit fill is only one part of structured cabling design. J-hooks, tray, sleeves, ladder rack and equipment-room management also need adequate capacity and bend-radius control.
Browse Bulk Cable for cable options and Tools & Installation for installation hardware.
Bottom line
Do not specify “X Cat6 cables fit in Y conduit” until you know the exact cable diameter and the requirements that govern the pathway. Calculate from real product dimensions, confirm code requirements, and leave enough practical capacity to pull and service the installation.
For a larger project, send us the cable category, approximate drop count and material list through Project Quote.
